The FRN0010C2S-7A model serves as an example of the Fuji Electric 3-Phase FRENIC-Mini AC Drive, which is a small and effective way to drive three-phase AC motors in a variety of industrial applications. In order to meet the needs of motor-driven systems that require variable speed control, this drive is made to be precise and flexible. The FRENIC-Mini’s small form factor and space-efficient design make it ideal for installations where real estate is a key component.
The FRN0010C2S-7A model is exceptional at controlling torque and motor speed, which maximises energy efficiency and improves system performance as a whole. The motor and related machinery experience less mechanical stress because to its advanced control algorithms, which provide seamless acceleration and deceleration. With cutting-edge features including dynamic braking and adjustable speed-torque characteristics, this drive offers consumers.

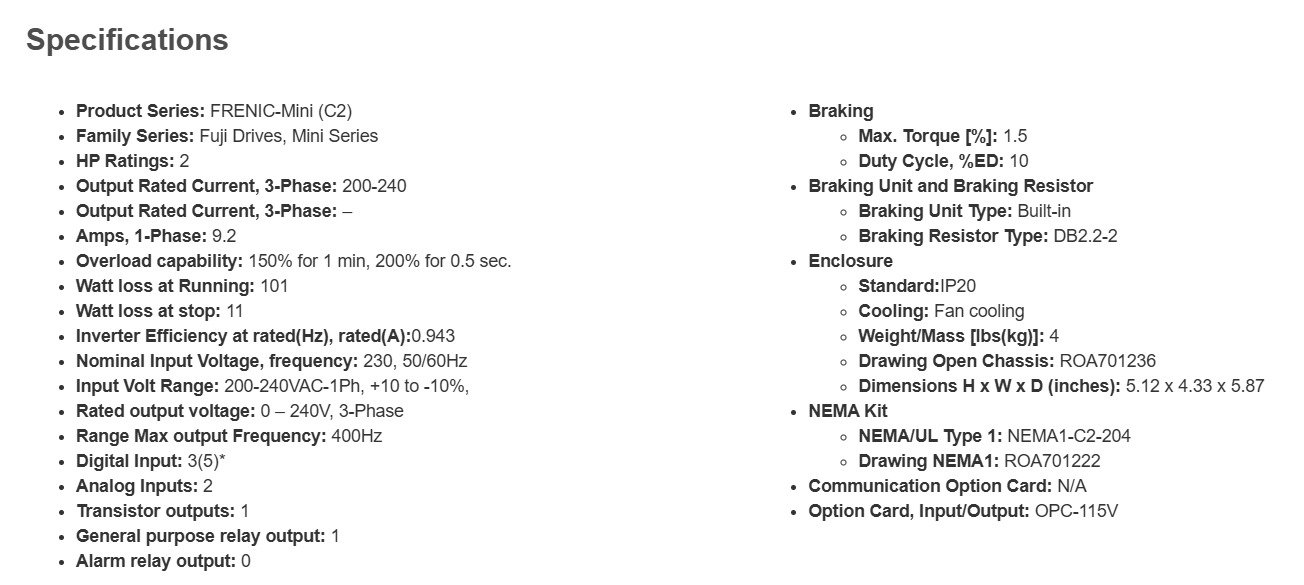

Voltage & Power :
200–240 VAC 3-phase input (also works single-phase in some models)
Delivers 1.5 kW (2 HP) motor power, about 9.2 A output current
Control & Motor Compatibility:
Supports V/f and dynamic torque vector control, ensuring high torque even at low speeds
Capable of driving both induction motors and permanent-magnet synchronous motors
High Starting Torque & Overload Capability:
Provides 150% torque at just 1 Hz thanks to slip compensation and auto‑torque boost
Overload rating: 150% for 1 min; 200% for 0.5 s
Built-in Braking & Energy Efficiency:
Integrated braking transistor (no extra hardware needed) with option for braking resistor kit
Features energy-saving control, PID loops, and fan on/off functionality
PID Controller & Process Control:
- Onboard PID controller can manage temperature, pressure, or flow without extra instruments
