Fuji Electric’s new compact inverter FRENIC-Mini (C2) Series performs well in both single-phase and three-phase applications and is available in a variety of configurations to accommodate AC drives ranging from 1/8 HP to 20 HP, variable frequency drives (VFD), and v/Hz vector drives. With a wider range of rated voltages, the new FRENIC-Mini (C2) strikes the ideal compromise between price and performance.
Fuji Frenic Series VFDs are compact, strong, dependable, and inexpensive. Multiple series VFDs are available to support a wide range of applications. Fuji Frenic Mini AC Drives, Fuji Frenic ACE AC Drives, Fuji Frenic MEGA AC Drives, Fuji Frenic HVAC AC Drives, Fuji Frenic eHVAC AC Drives, Fuji Frenic AQUA AC Drives, Fuji Frenic ECO AC Drives, and Fuji Frenic LIFT AC Drives.

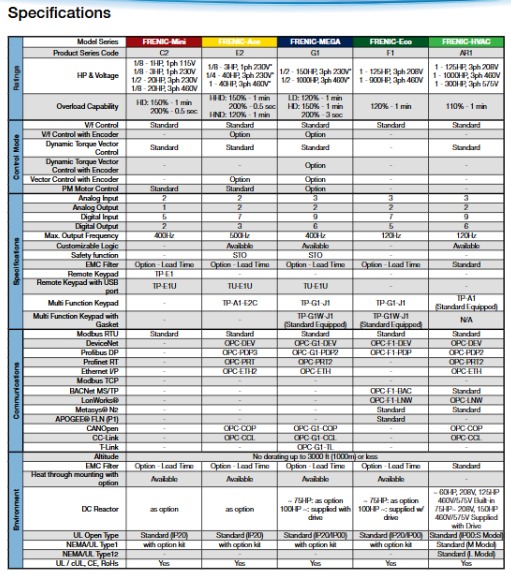

Core Specifications:
Input / Output Power: Single-phase 200 VAC input; 0.75 kW output; rated current ~5.5–6 A
Voltage & Frequency Range: 0–240 V 3-phase up to 400 Hz output
- Enclosure & Cooling: IP20 (open frame), natural convection cooling; compact size ~80 × 120 × 140 mm
Advanced Motor Control:
Dynamic Torque Vector Control: Ensures stable torque even at low speeds
V/f Control + Slip Compensation: Includes automatic torque boost to deliver 150 % starting torque at 1 Hz .
Supports Induction & PM/Synchronous Motors: Sensorless control option available
Built‑In Functions & Protection:
Overload Capability: 150 % for 1 min and 200 % for 0.5 s
Braking: Built-in braking transistor and resistor (DB0.75‑2), delivering up to 150 % braking torque, 18 % duty cycle
I/O & Communication:
Digital Inputs: 3 (expandable to 5)
Analog Inputs: 2
Transistor Output: 1; Relay Output: 1
- Communication: Standard RS‑485 interface with Modbus-RTU support
Usability & Installation:
- User Interface: LED keypad; compatible with FRENIC Loader software
- Compact Size & Mounting Options: Dimensions approx. 4.7 × 3.1 × 5.5″ (120 × 80 × 140 mm); lightweight (~2 lb)
