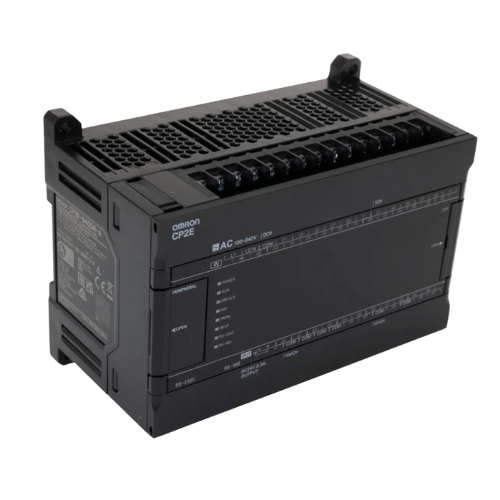

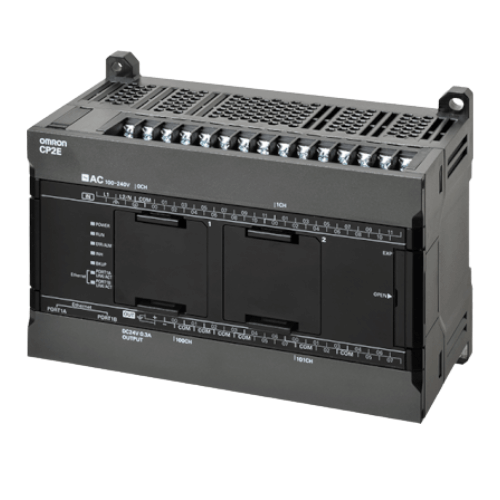

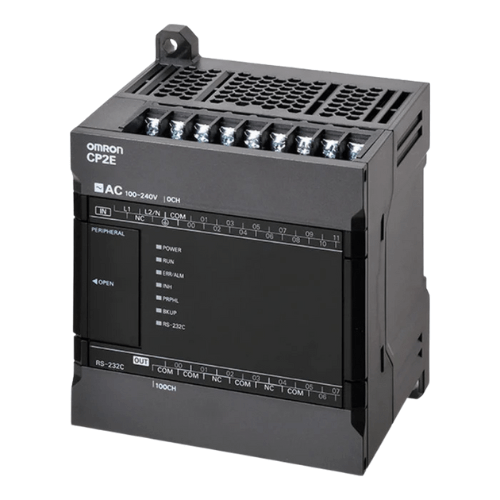

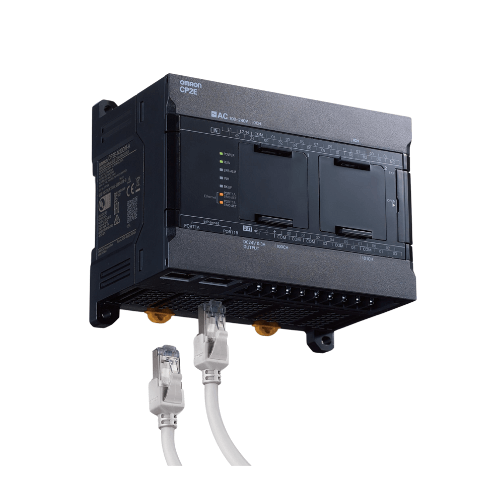

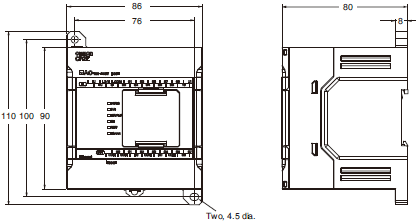

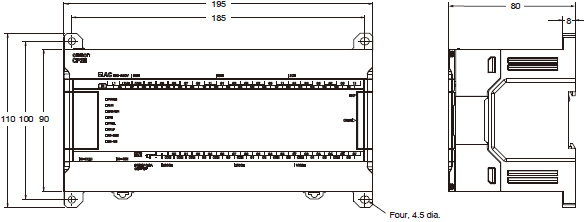

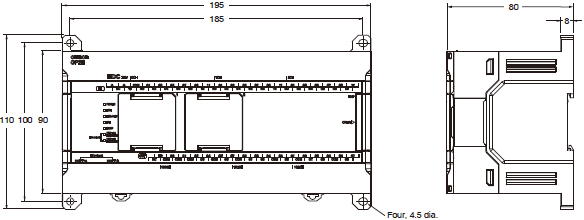

CP2E OMRON PLC

• Network Model features Ethernet connectivity + 4-axis positioning: CP2E-N type
• Standard Model features axis control: CP2E-S type
• Essential Model features basic control: CP2E-E type

Features:

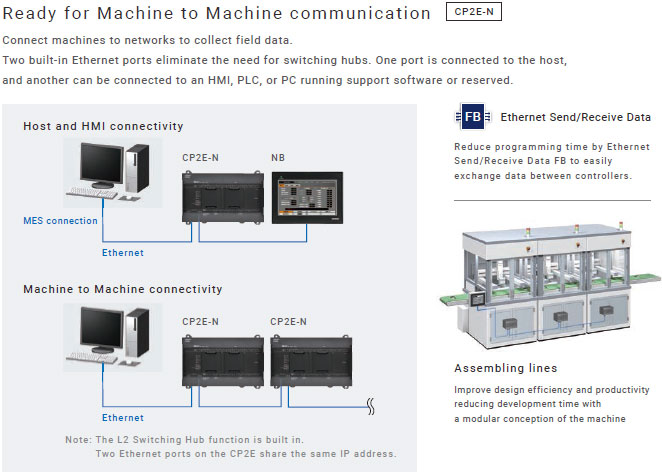

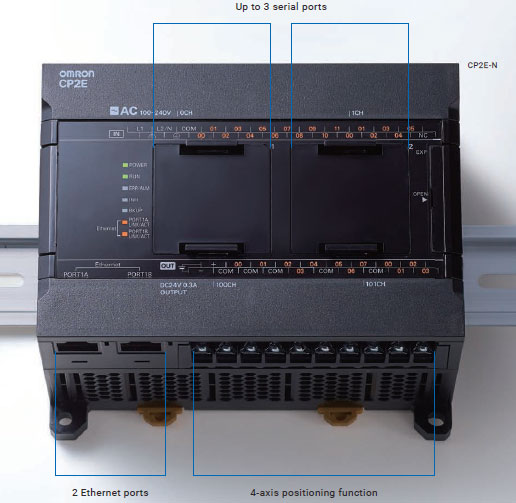

• Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)

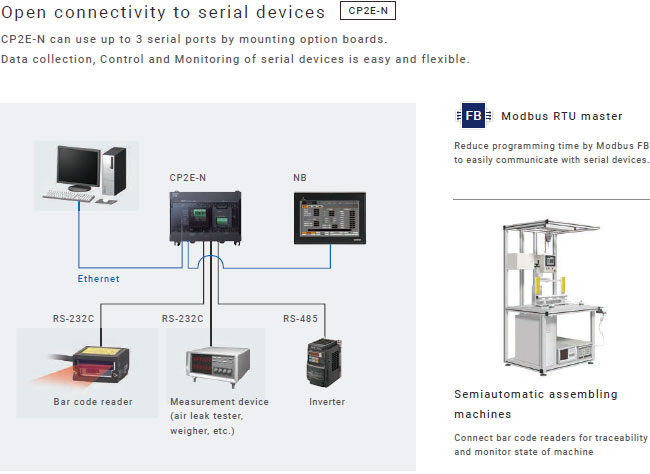

• Up to three serial ports: Open connectivity to serial devices (CP2E-N type)

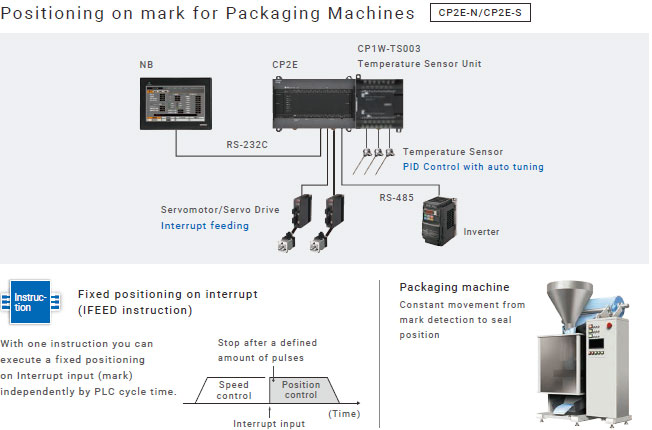

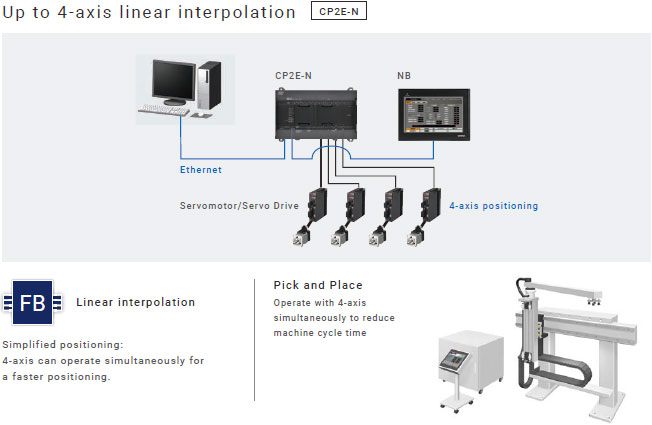

• Four-axis positioning function with linear interpolation (CP2E-N type)

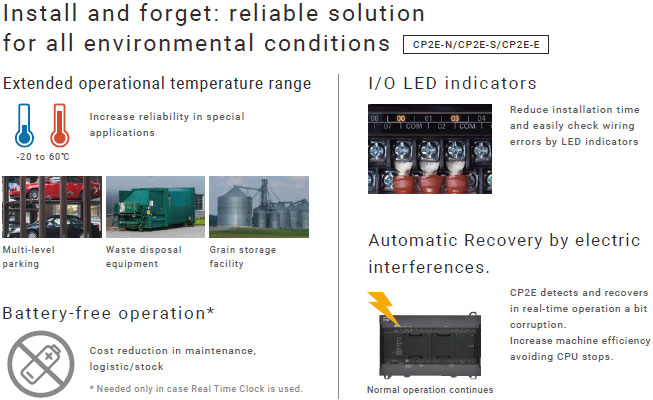

• Battery-free operation and backup reduce maintenance
• Function blocks and structured text improve programming efficiency
• Operating temperature range from -20 to 60 °C for reliable use in special applications
• Input/output terminal LED indicators for quick troubleshooting

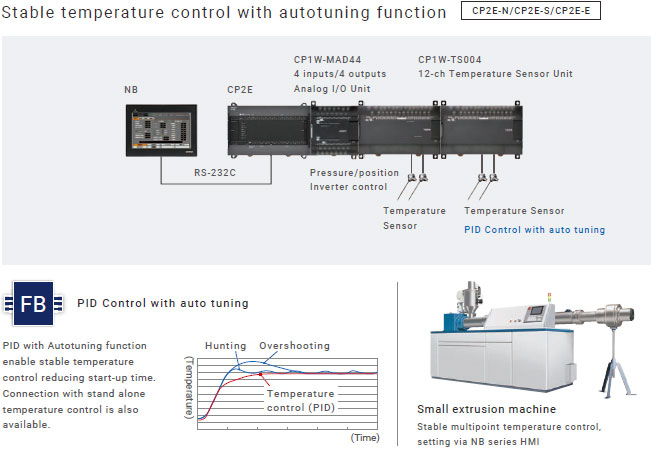

Diverse range of functions for your machine

Efficient solution for a flexible production, traceability and monitoring of machine key assets, to respond to operational excellence.
Improved connectivity to networking and serial devices.
Reduced development time with function blocks (FBs) programming.
Battery-free operation increases robustness and reduces maintenance. The extended operating temperature range increase reliability for special applications.

Diverse range of functions for your machine

Reduced effort to realize complex machines

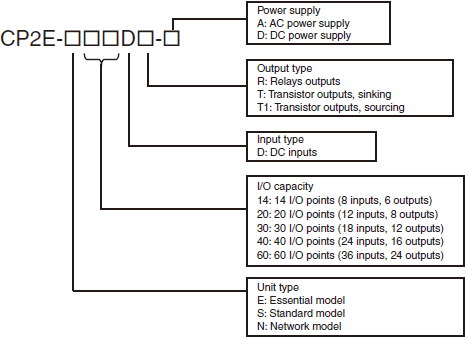

Model Number Structure

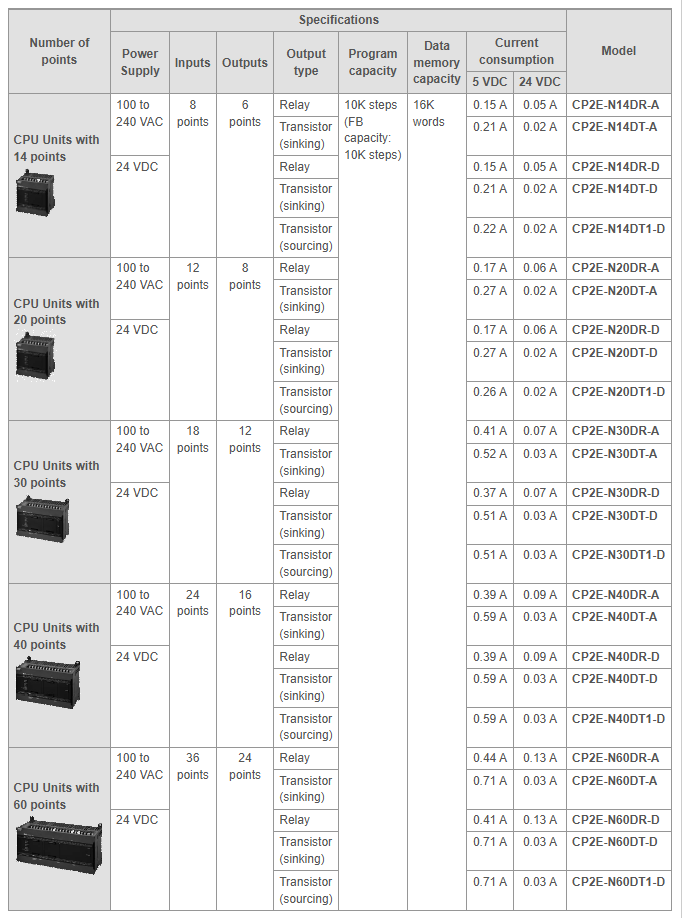

Ordering Information

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

CPU Unit

CP2E-N-type/Network model

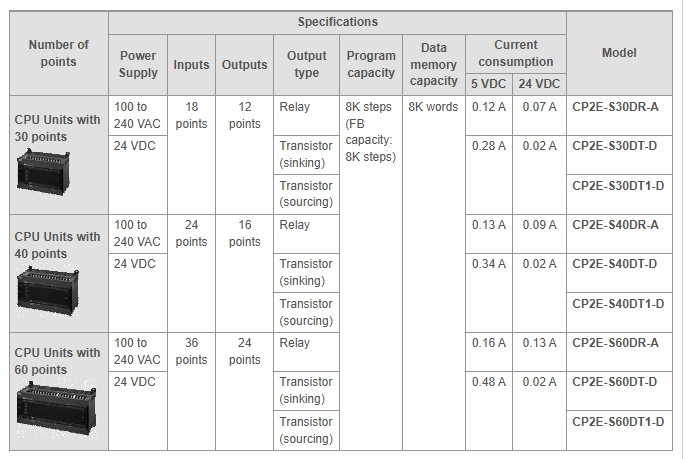

CP2E-S-type/Standard model

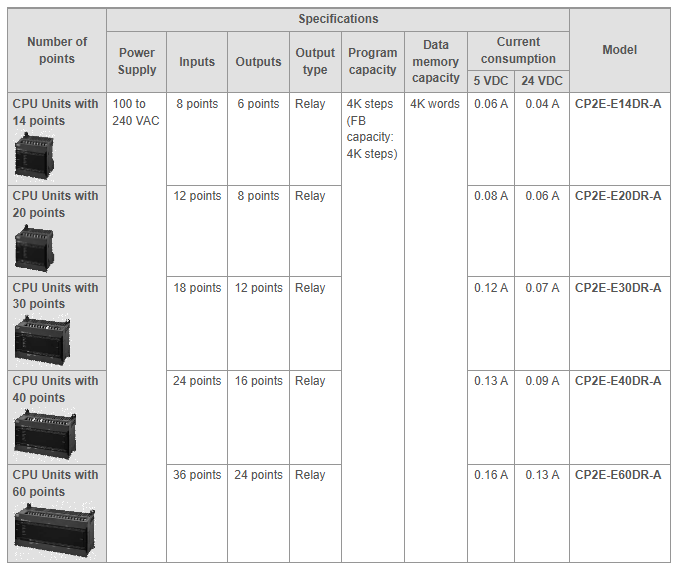

CP2E-E-type/Essential model

Optional Products

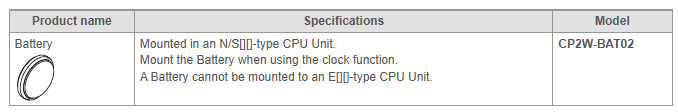

Battery

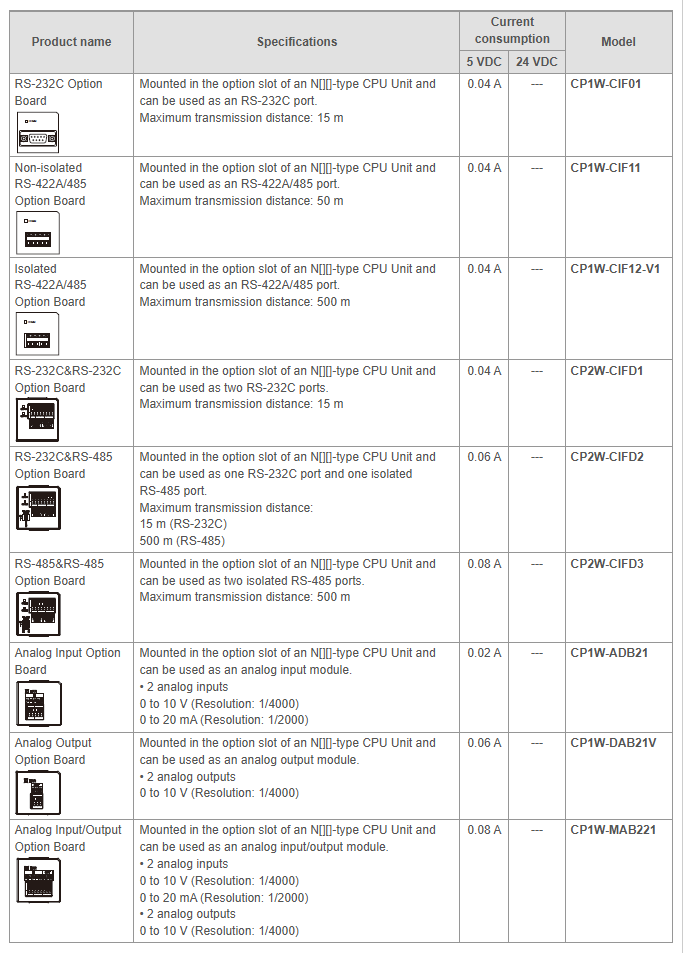

Option Board

Note:

1. Maximum one Analog Option Board can be mounted on an N[][]-type CPU Unit.
2. The CP1W-ME05M Memory Cassette, CP1W-DAM01 LCD Option Board, and CP1W-CIF41 Ethernet Option Board cannot be used with the CP2E CPU Unit.

3. Option Boards cannot be used with the E/S[][]-type CPU Unit.

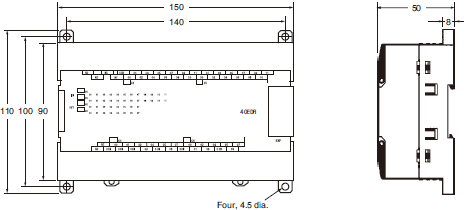

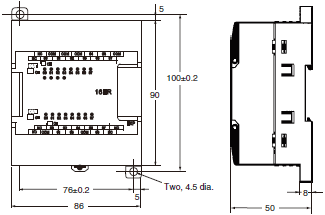

Expansion I/O Units and Expansion Units (for E30/40/60, S30/40/60, or N30/40/60 CPU Units)

E14/20 or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.

I/O Connecting Cable

Recommended Ethernet Communications Cables

For the Ethernet communications cable specifications, refer to Catalog

1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
　　7.5 m, 10 m, 15 m, 20 m.
　　Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
　　For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
2. Cable colors are available in yellow, green, and blue.

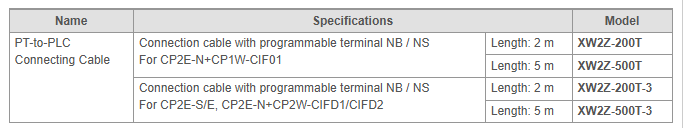

RS-232C Connecting Cable

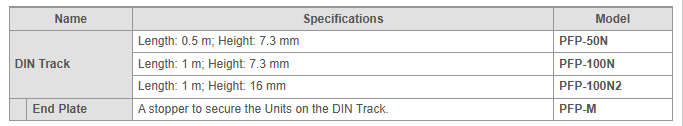

DIN Track Accessories

Programming Devices

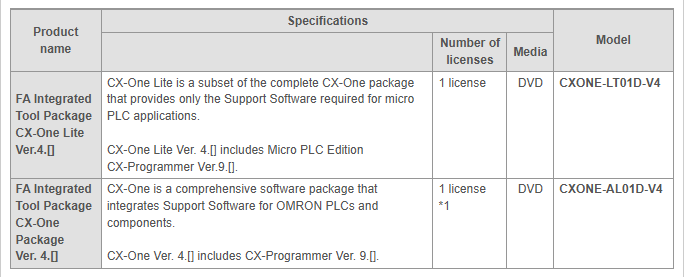

Software

Note:

1. For details, refer to the CX-One Catalog (Cat. No. R134), visit your local OMRON website.

2. CP2E CPU Units are supported by CX-One version 4.51 or higher and CX-Programmer version 9.72 or higher.

3. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.

General Specifications

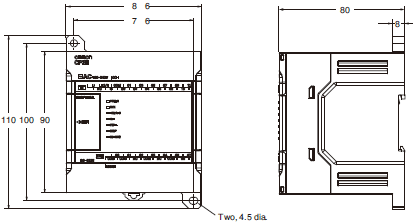

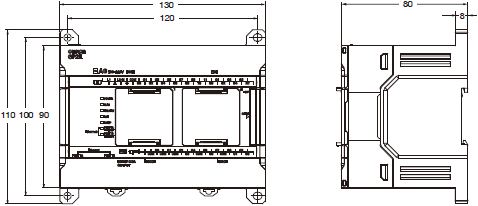

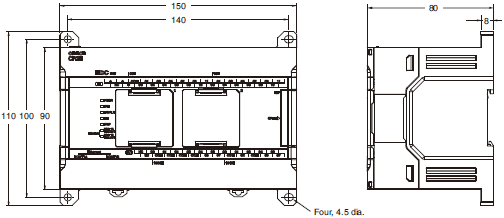

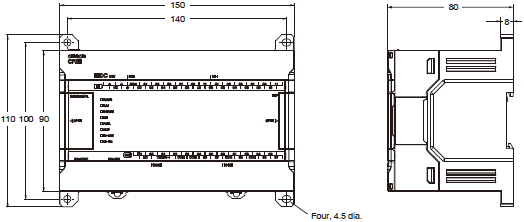

1. Total of 110 mm with mounting brackets.
2. Excluding cables.
3. Use the external power supply to power input devices. Do not use it to drive output devices.
4. This is the rated value for the maximum system configuration. Use the following formula to calculate power
consumption for CPU Units with DC power.
Formula: DC power consumption = (5V current consumption × 5 V/70% (internal power efficiency) + 24V current
consumption) × 1.1 (current fluctuation factor)
The above calculation results show that a DC power supply with a greater capacity is required.
Note: The Expansion I/O Units and Expansion Units work under the same conditions as the CPU Units unless otherwise specified.
