PS5000 Series (Slim Type)

PS5000 Series Modular Type

PS5000 Series

(Slim Type)

Panel-integrated type – drastically slimmer profile with less wasted space and high performance retained featuring optimized design for equipment that requires space-saving.

Display Size:
19″ Wide, 15″ Wide, 10″ Wide.
CPU:
Core i7,  Atom.
  • Connectivity
  • Reliability
  • Almighty
  • Design Quality

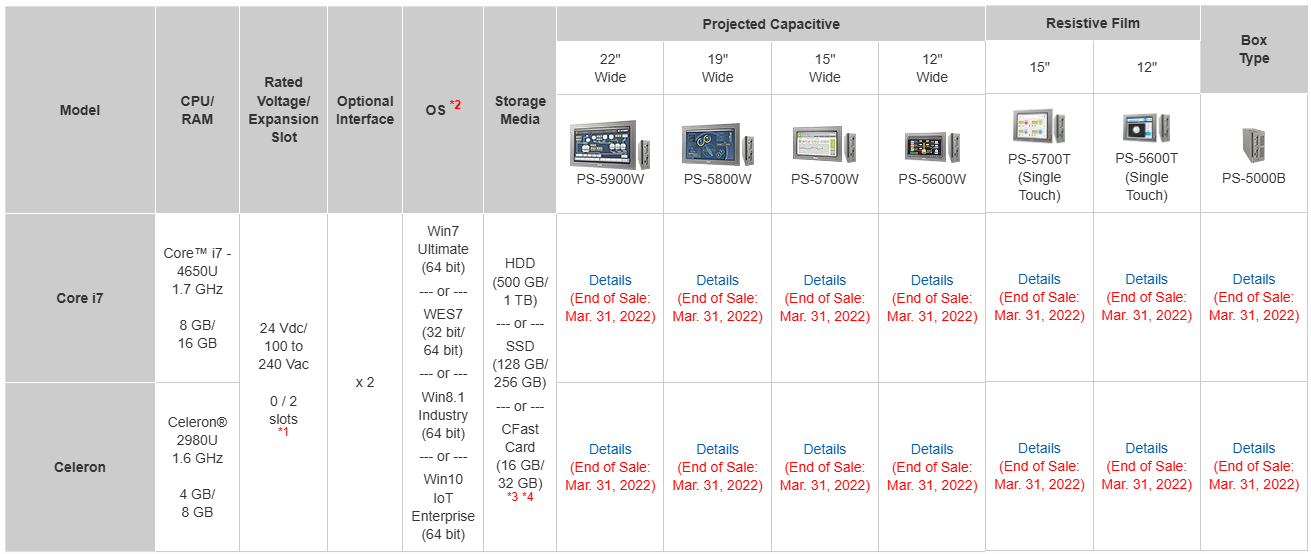

Core i7/Celeron Model

5000

*1PCI or PCIe combination can be chosen for a 2 slot type model.

*2Click here for the supply period of each OS.

*3For WES7 only.

*416GB CFast is available for secondary storage only.

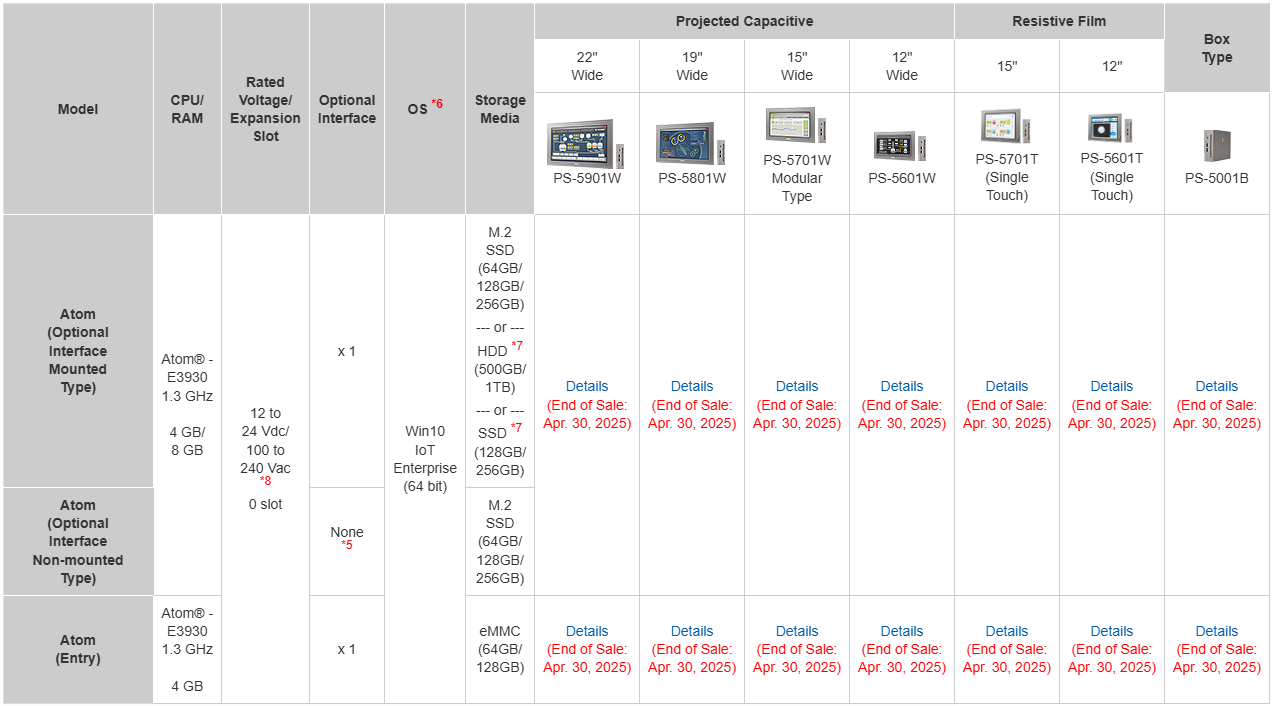

Atom Model

5000 2

*5Internal expansion can be used.

*6Click here for the supply period of each OS

*7For secondary storage only.

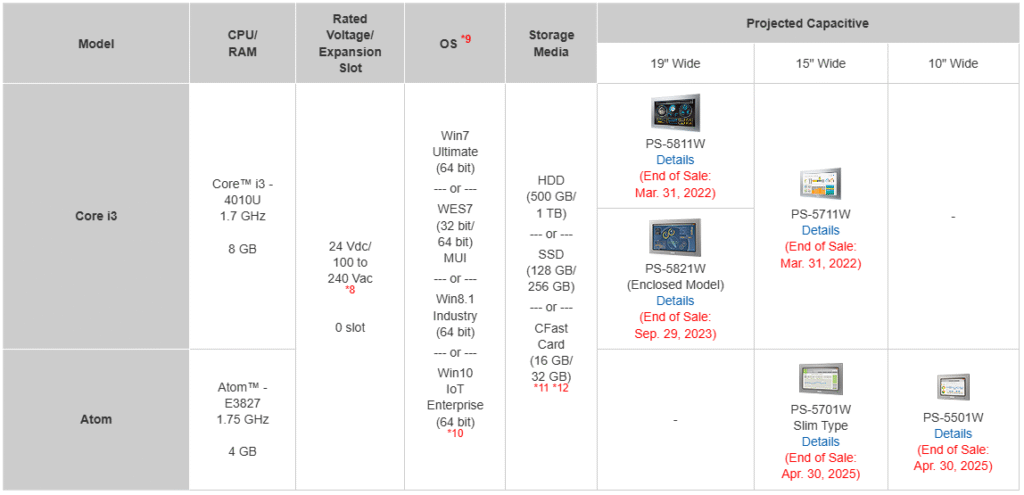

Slim Type

5000 slim

*8For use at 100 to 240 Vac, an optional AC / DC power adapter (Core i3 model except PS-5821W: PFXZPSPUAC3, Atom model: PFXZPSPUAC2) that is separately sold is required.

*9Click here for the supply period of each OS.

*10For WES7 only.

*1116 GB CFast Card is available for secondary storage only. Enclosed model is not equipped with CFast.
