Project introduction:
- Seat part barcode verification and traceability.
- ID-40 For the Barcode reading

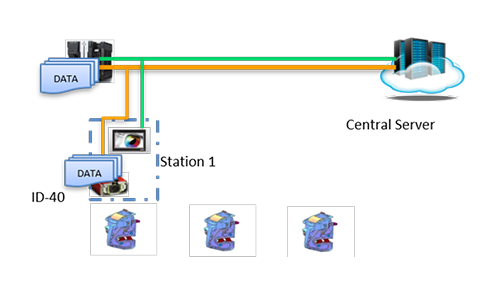

- NXDB used to compare the barcode and verify with the Database and log data in the database.
Description:

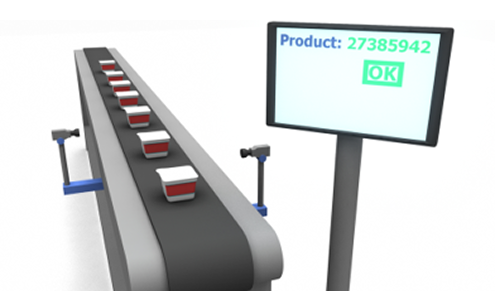

- The parts are placed on the conveyor for the verification and testing of the Barcode.
- ID-40 Scan the Barcode String and passes to the NXDB Controller.
Solution introduction:
NXDB compares the Received string with the selected Product ID, if it doesn’t match with the selected Product then the belt stopped and gives alarms for the Wrong Product.
If it match with the Product ID then NXDB Compares the Barcode string with the SQL Database for the Duplication of the Barcode. If no Duplicate then it log the Data in the SQL database and if Duplicate then it stop the Conveyor for the Operator Checking.
Solution effect :From
1.Manual Entry of the each product.
2.Product with duplicate barcode went to market.
3.Time consuming faulty product traceability.
4.Lot of manpower .
5.No control over Human errors.
To
1.Record in the Database.
2.Duplicate barcode product rejected itself in the premises.
3.Very less time require to get the detail of the product from database.
4.Very less manpower.
5.Human error bypassed as NXDB used for traceability.
