Application Brief:

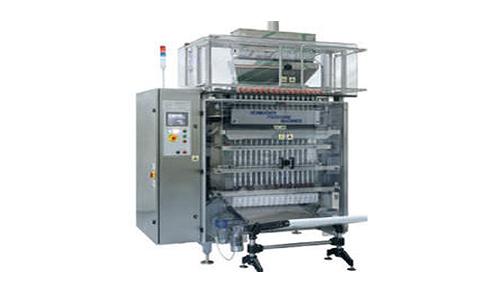

Multi Track Vertical Form Fill and Seal machine.
| Description | Old Solution | New Solution |
|---|---|---|

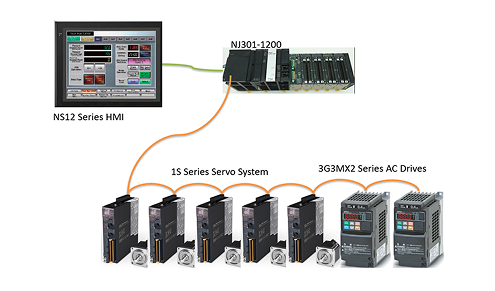

| 1. Servo System | Incremental/SSCNET | Absolute Encoder/EtherCAT |
| 2. Motion Controller | FX5-40SSC Motion Module | NJ301-1200, NJ Series Motion CPU |
Customer Requirements
- Machine Speed up to 110 Packs/min
- Absolute Servo System/ no Homming.
- High Speed Motion Controller for the Eye Mark Accuracy.
Customer Impact
- Low speed against competitor.
- High development time.
- Hard Motion Programming language.
Advantage
- Print Mark Accuracy at high speed. 100 PPM.
- Absolute Servo System/ no Homming.
- High Speed Motion Controller for the Eye Mark Accuracy.
Key Points to Success
- 23 bit high resolution absolute encoder system
- Very High Speed Machine Automation Controller
