Application Brief:
Honing is an abrasive machining process that produces a precision surface on a metal work piece by scrubbing an abrasive stone against it along a controlled path.
| Description | Old Solution | New Solution |
|---|---|---|

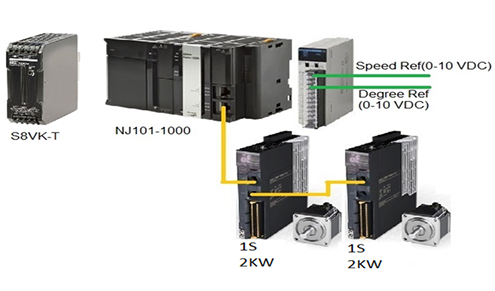

| 1. High Speed Oscillation | Mechanical CAM. Low speed | NJ and 1S servo used for the High speed oscillation of the scrubbing stone. |
| 2. Homing | No | Absolute Homing |
Customer Requirements

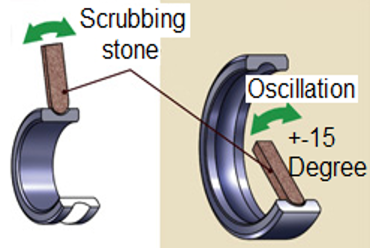

- High speed oscillation of the Scrubbing stone. 1200 Oscillation per minute.
- Homing Free Operation at Power on/off.
Customer Requirements
- Low productivity due to limitation in the Honing speed. Only 500 Oscillation per minute
- Complex Structure for the Proxy Mounting
Advantage
- Achieved 1200 oscillation per minute.
- Homing Free operation
Key Points to Success
- IP67 protection standard servo motors.
- 23-bit High Resolution Absolute Encoder.
